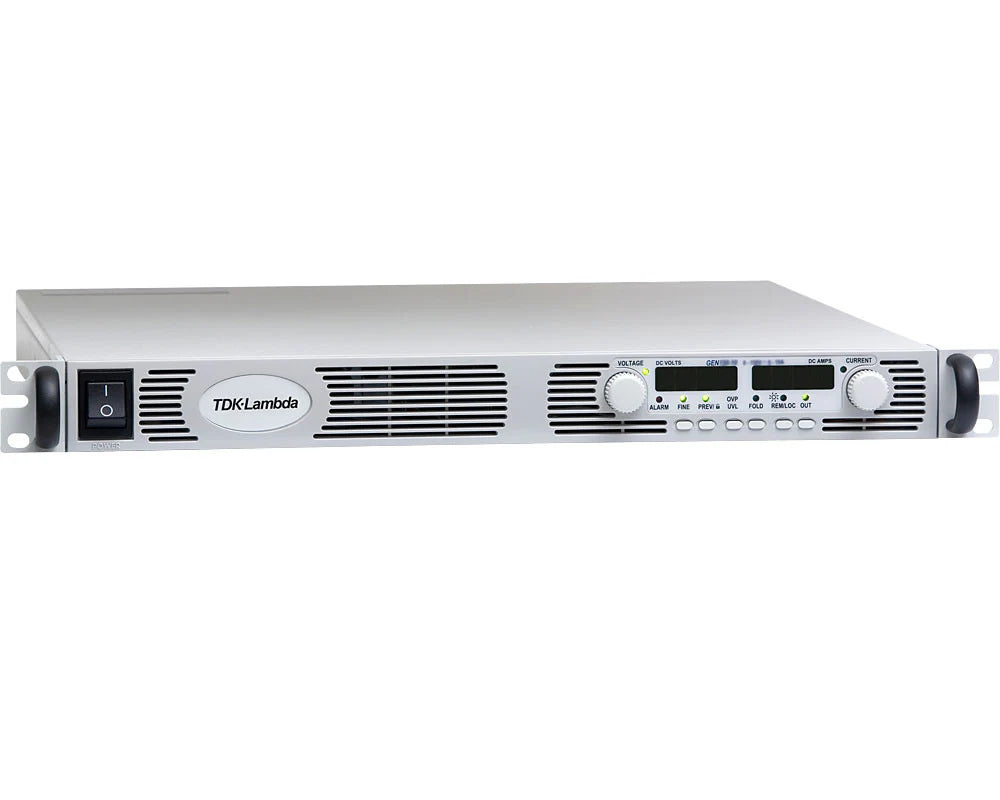

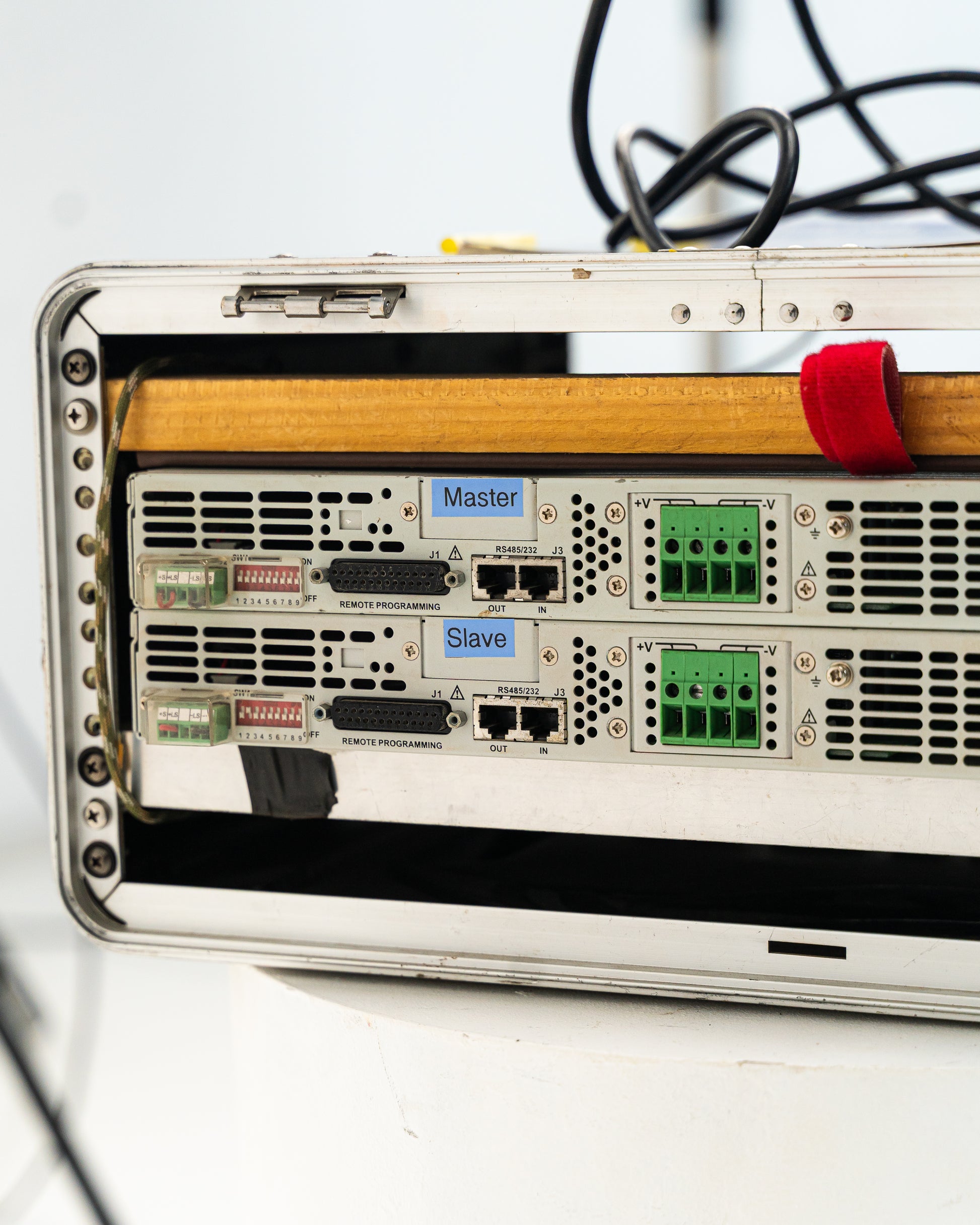

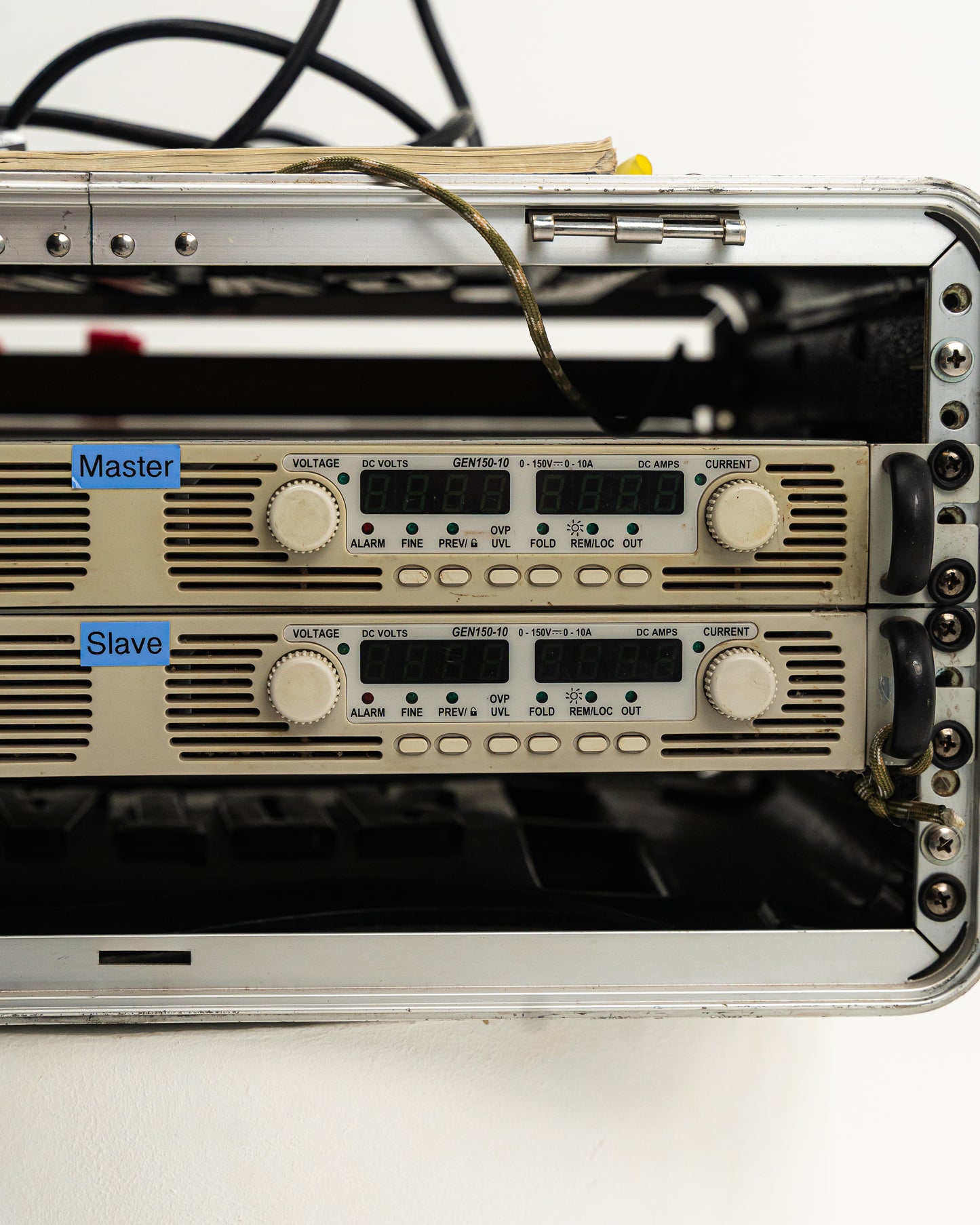

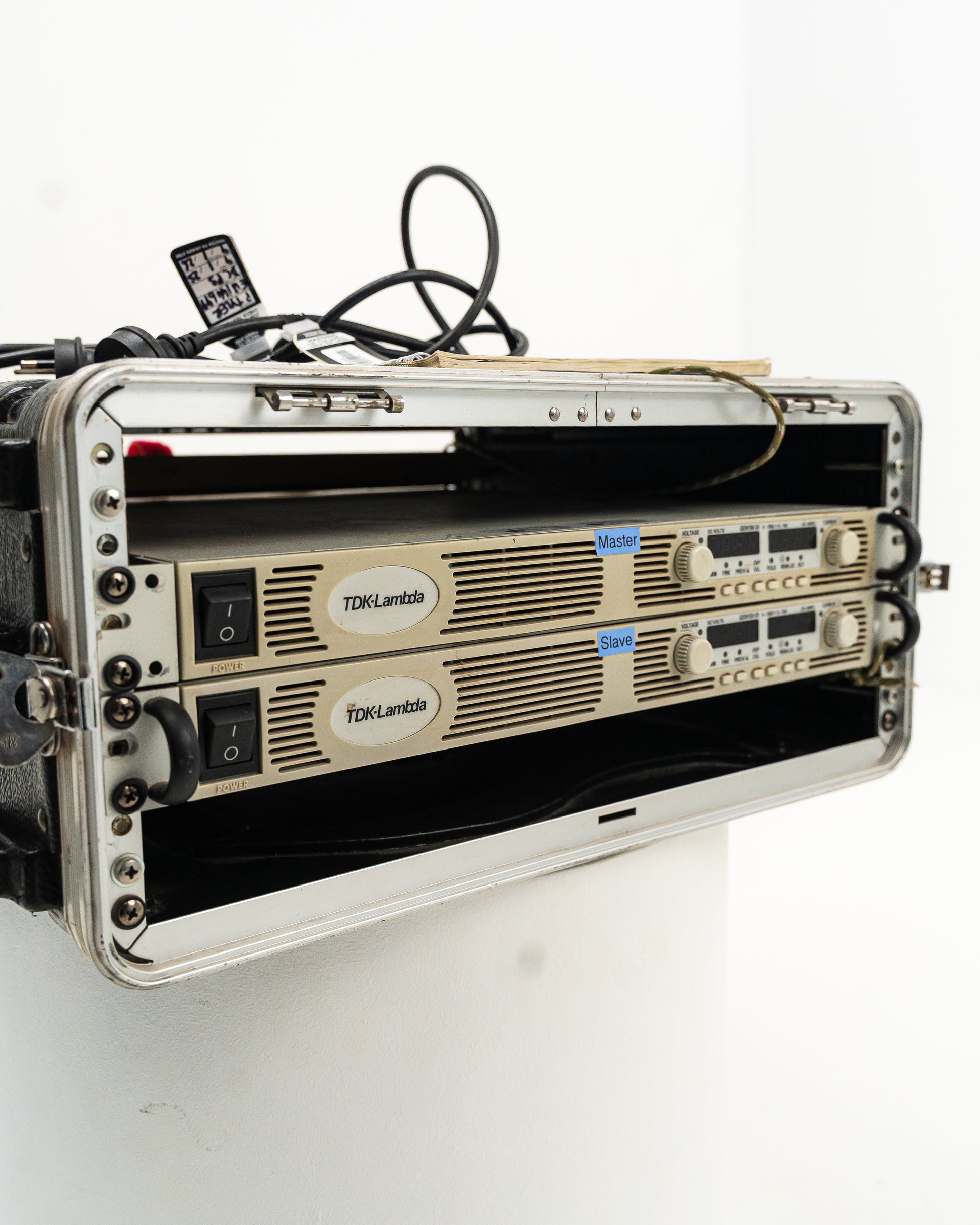

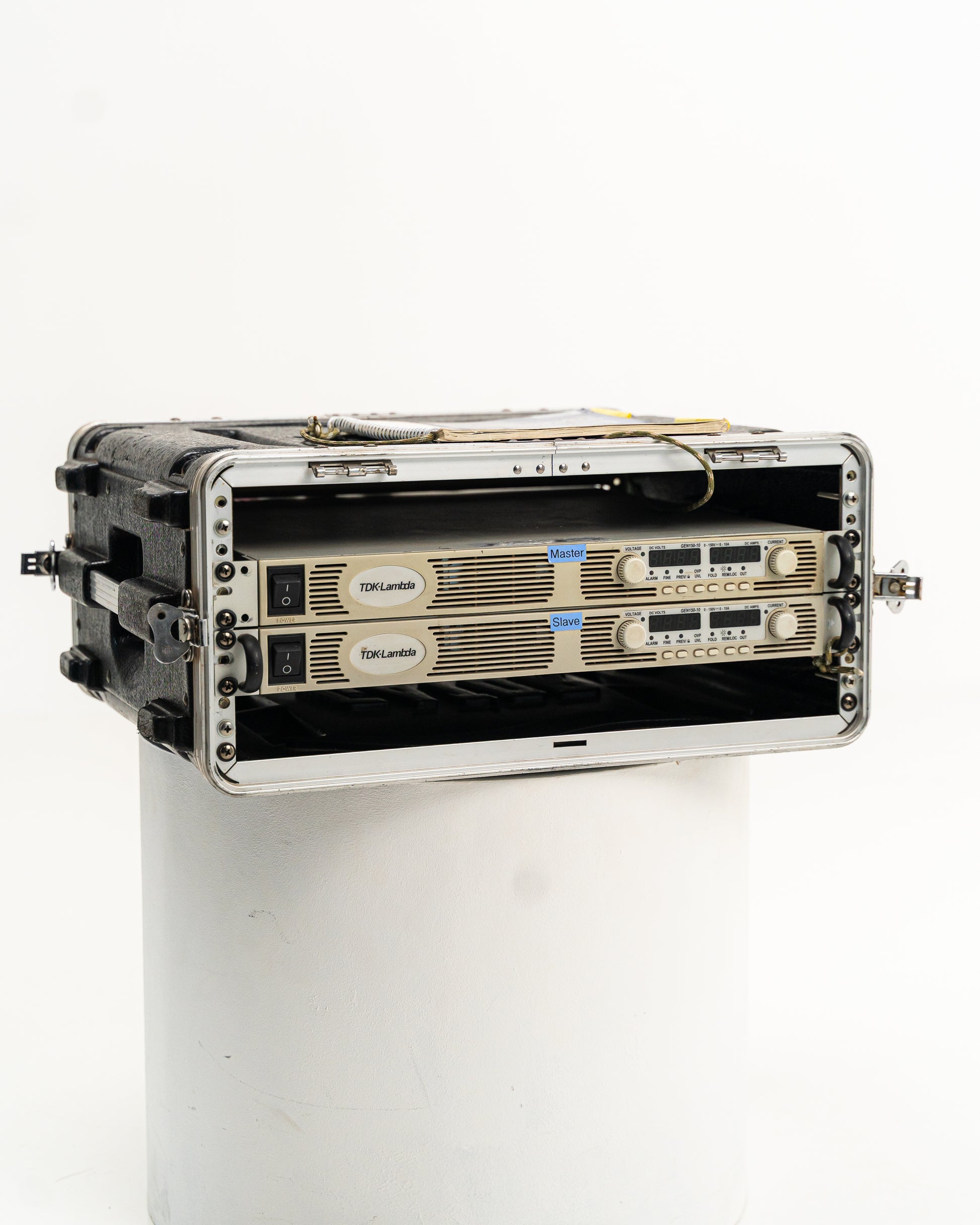

TKD-Lambda GEM-150-10

The TDK-Lambda GEM-150-10 is a high-precision, programmable electronic load designed for testing and simulating a variety of electrical components and power sources. Ideal for power supply testing, battery simulation, and component evaluation, the GEM-150-10 provides exceptional accuracy and versatility for R&D, manufacturing, and field service applications.

• High Power Capability – With a 150W power rating, the GEM-150-10 can test a wide range of devices, from low-power components to high-current systems, ensuring reliable performance across diverse applications.
• Wide Input Voltage Range – Operates across a broad input voltage range from 0V to 80V, making it suitable for testing both low and high-voltage devices with precision.
• High-Precision Constant Current/Voltage/Resistance Modes – Offers CC, CV, and CR modes, enabling flexible testing for power supplies, batteries, and other electronic components, with excellent accuracy.
• Programmable Testing – Features programmable load settings to simulate dynamic load conditions for in-depth testing of power sources and performance verification.
• Digital Display & User-Friendly Interface – Equipped with a large, clear display, the GEM-150-10 provides real-time feedback on voltage, current, and power, with easy-to-navigate controls for efficient operation.
• Protection and Safety Features – Built-in protections for overvoltage, overcurrent, and over-temperature ensure safe operation during testing, preventing damage to both the load and the device under test.
• Compact & Rugged Design – Compact and rugged for both bench-top and portable use, ideal for test environments with limited space or field testing scenarios.

Applications

• Power supply testing and evaluation for power converters, chargers, and adapters.
• Battery simulation for testing and characterising battery-powered devices.
• Component testing for resistors, capacitors, diodes, and other power electronics.
• R&D and prototyping of new electrical systems and devices.

Technical Specifications

• Power Rating: 150W
• Input Voltage Range: 0V to 80V
• Modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR)
• Display: Large, clear digital display
• Protection Features: Overvoltage, Overcurrent, Over-temperature
• Design: Compact and rugged for portable us.
