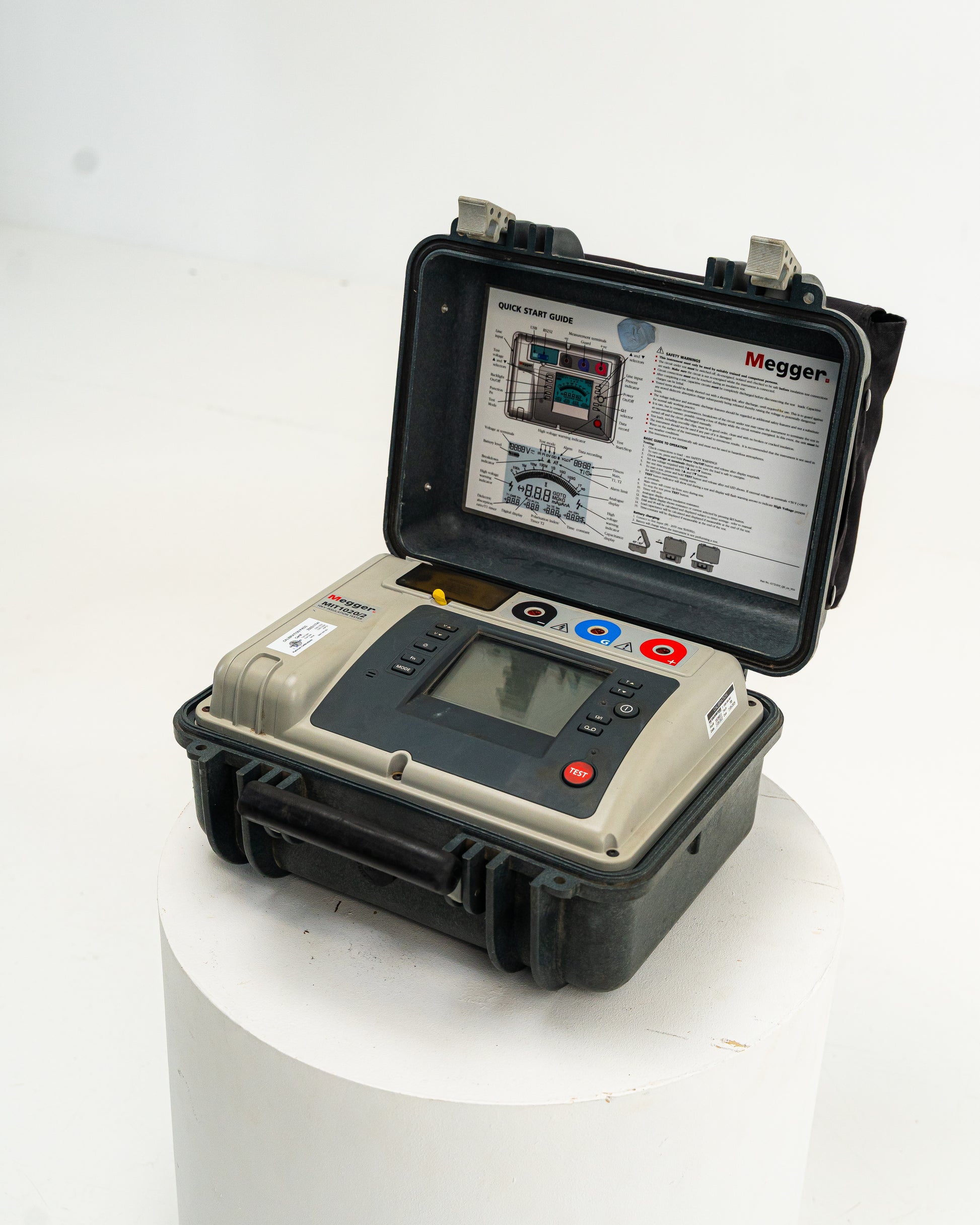

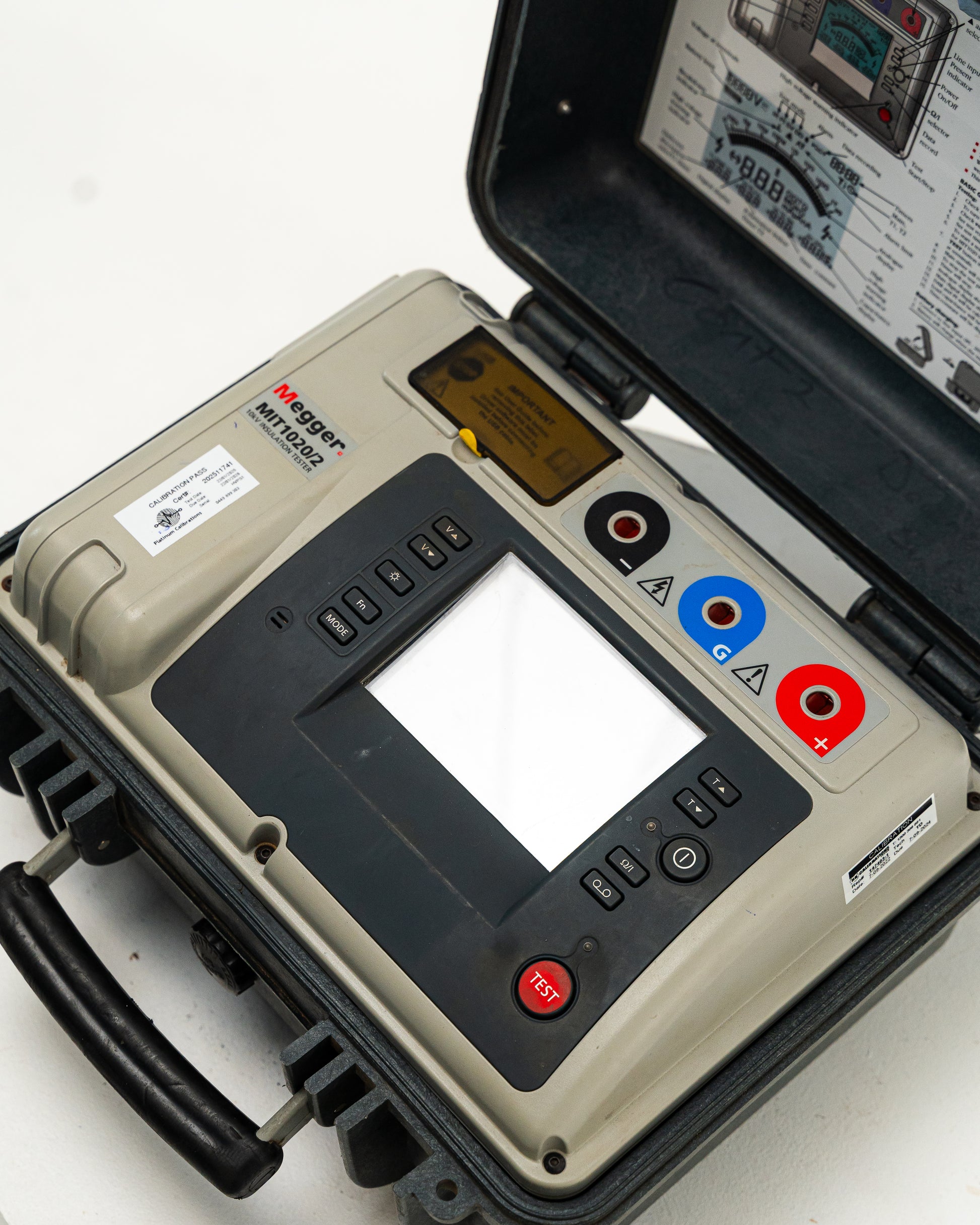

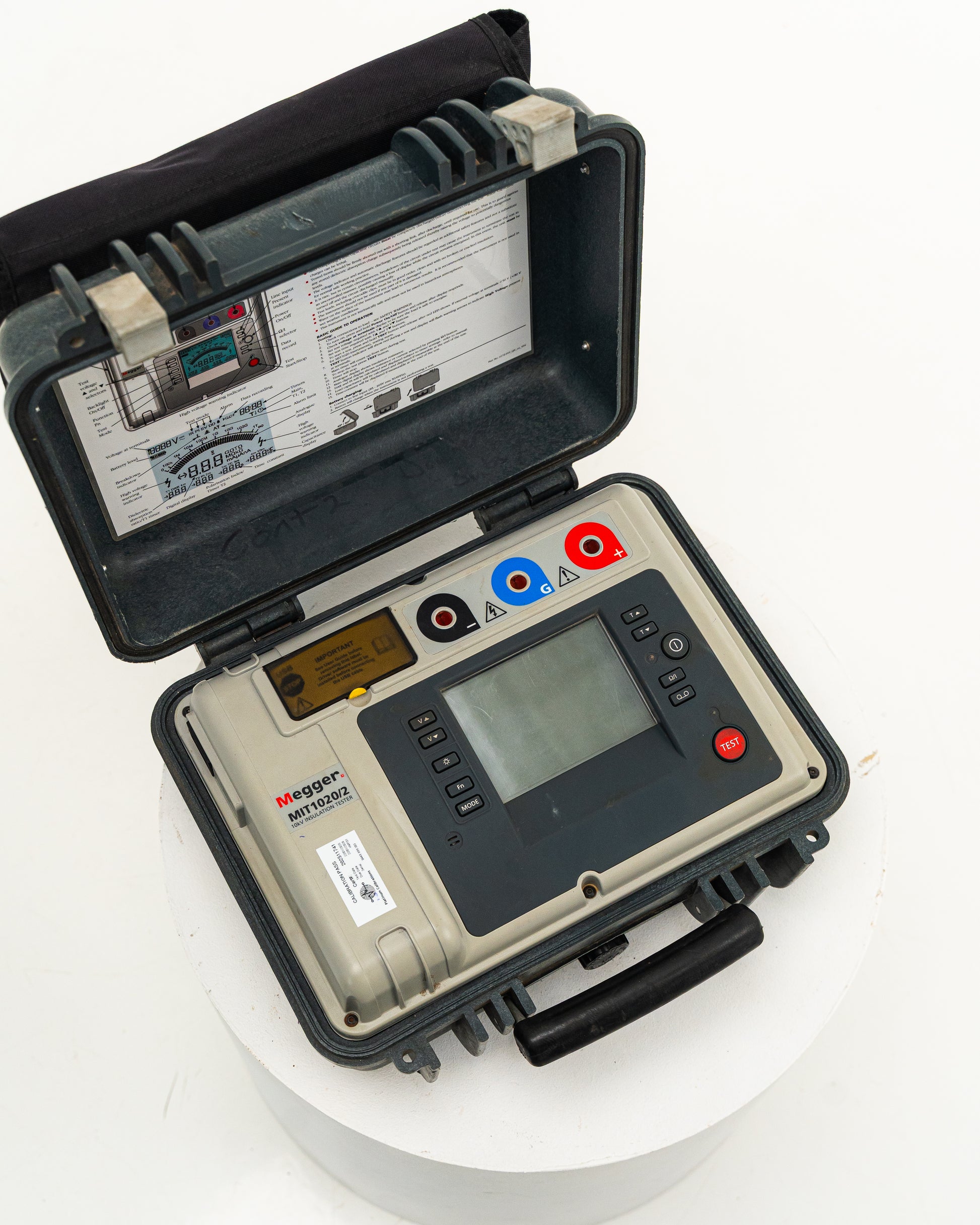

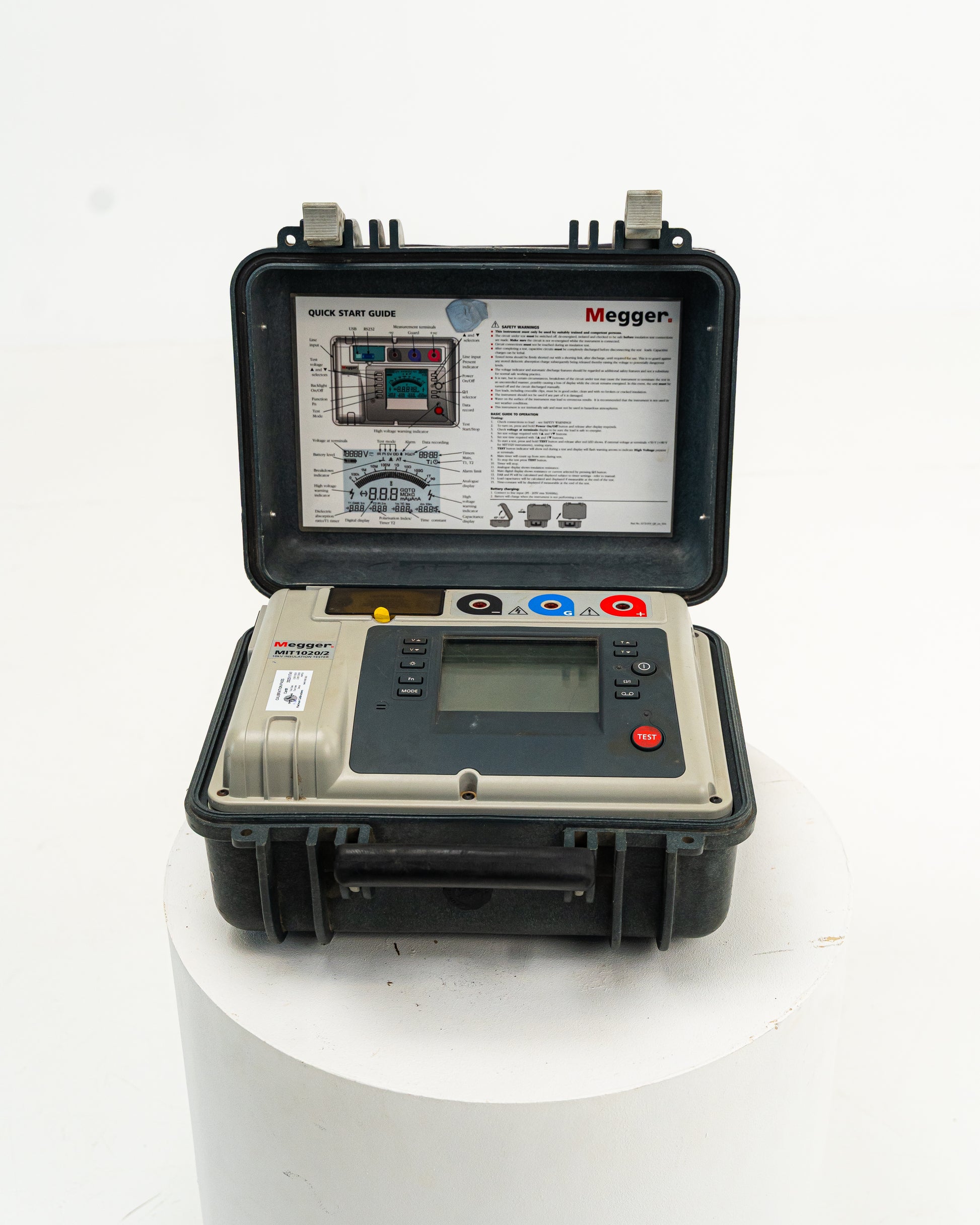

Megger MIT1020/2

/

The Megger MIT1020/2 is a rugged, high-voltage insulation resistance tester designed for accurate and reliable testing of electrical insulation in cables, transformers, motors, generators, and switchgear. With a 10kV test voltage and advanced diagnostic features, the MIT1020/2 is ideal for power utilities, industrial maintenance, and field service professionals.

Key Features & Benefits

  • 10kV Insulation Resistance Testing – Measures up to 20 TΩ, ensuring precise insulation assessment for high-voltage equipment.
  • Advanced Diagnostic Functions – Includes Polarisation Index (PI), Dielectric Absorption Ratio (DAR), Step Voltage (SV), and Dielectric Discharge (DD) tests for in-depth insulation analysis.
  • Large, Backlit Display – Provides clear, real-time readings in all lighting conditions, improving usability in the field.
  • CAT IV 600V Safety Rating – Designed for use in high-voltage environments, ensuring operator safety.
  • Battery or Mains Operation – Offers long battery life for field testing, with optional mains power operation for extended use.
  • Tough & Portable Design – IP65-rated casing provides dust and water resistance, making it ideal for harsh environments.
  • Data Storage & USB Download – Saves test results for easy reporting and compliance documentation.

Applications

  • High-voltage insulation testing for cables, motors, generators, and transformers.
  • Routine maintenance and commissioning of electrical assets.
  • Condition monitoring and fault diagnosis in industrial and utility applications.
  • Compliance testing with industry standards.

Technical Specifications

  • Test Voltage: Up to 10kV
  • Insulation Resistance Range: Up to 20 TΩ
  • Diagnostic Tests: PI, DAR, SV, DD
  • Safety Rating: CAT IV 600V
  • Display: Large backlit LCD
  • Power Supply: Rechargeable battery & mains option

The Megger MIT1020/2 delivers powerful, precise, and reliable insulation resistance testing, making it the go-to choice for electrical professionals working with high-voltage systems.
