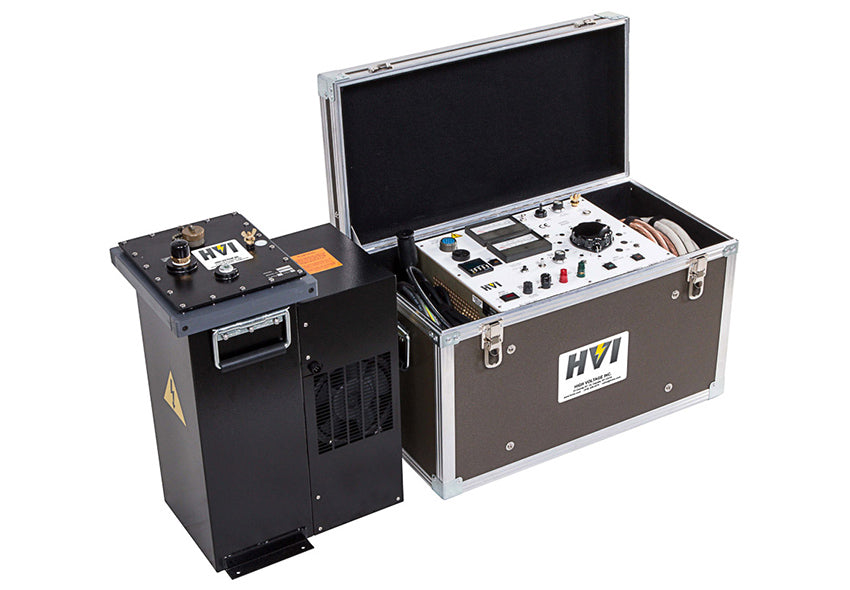

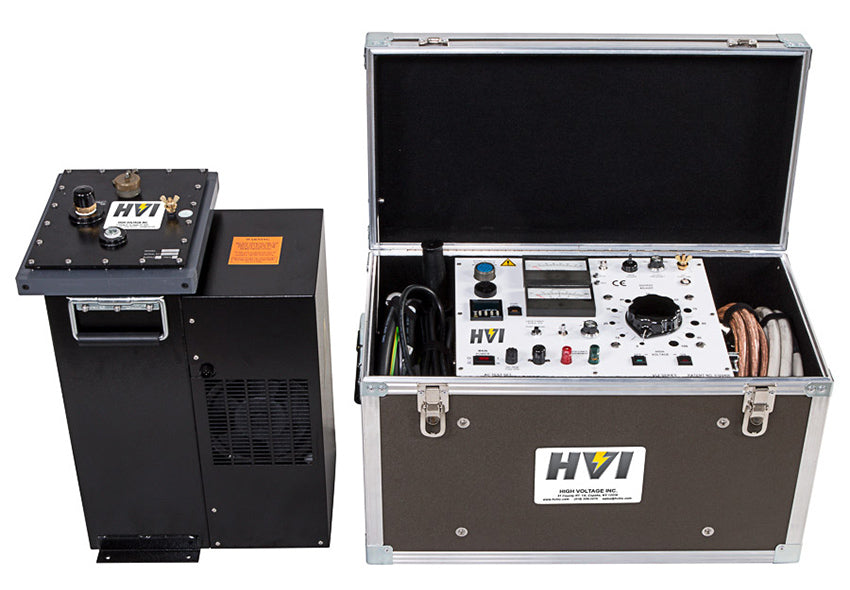

VLF-6022CM Hipot Tester

The VLF-6022CM is a high-performance VLF AC hipot tester purpose-built for testing medium- and high-voltage cables and electrical equipment. Delivering up to 62 kV peak (44 kV RMS), it combines powerful diagnostic and withstand testing capability with lightweight portability and user-friendly operation. Trusted by power utilities, contractors, and service professionals, the VLF-6022CM ensures accurate, efficient, and safe testing in both field and laboratory environments.

Key Features & Benefits

High-voltage output – Provides up to 62 kV peak (44 kV RMS), suitable for cables rated up to 35 kV and beyond.
VLF 0.1 Hz sine wave – Minimises insulation stress while ensuring effective and compliant testing.
Automated test sequences – Built-in programmable withstand and timed tests reduce operator error.
Integrated data storage – Internal memory with export options simplifies reporting and record-keeping.
Portable and rugged – Lightweight, durable design for use in demanding field conditions.

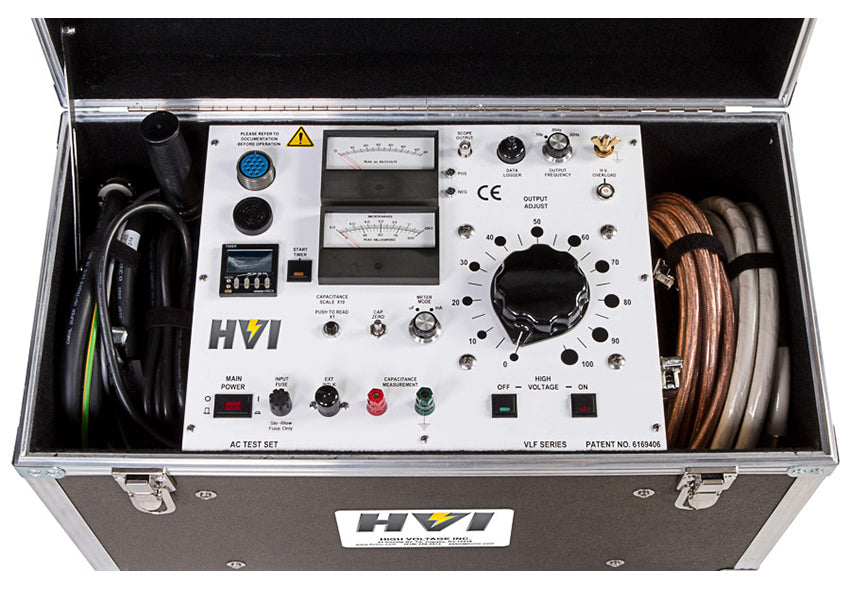

Easy-to-use interface – Clear LCD display and intuitive controls streamline operation.
Safety-focused design – Equipped with emergency stop, HV interlock, and overvoltage protection.

Technical Highlights

Output Voltage: Up to 62 kV peak (44 kV RMS)
Waveform: 0.1 Hz sinusoidal VLF
Max Load Capacitance: 5 µF at full voltage
Test Modes: VLF sine, DC, burn mode
Data Storage: Internal memory with export capability
Weight: Approx. 25–30 kg (model dependent)
Display: LCD with test progress/results
Safety Features: Emergency stop, HV interlock, automatic discharge

Download Specifications (PDF)

View Specifications (PDF)
