High-Precision Current Booster for Circuit Breaker Testing

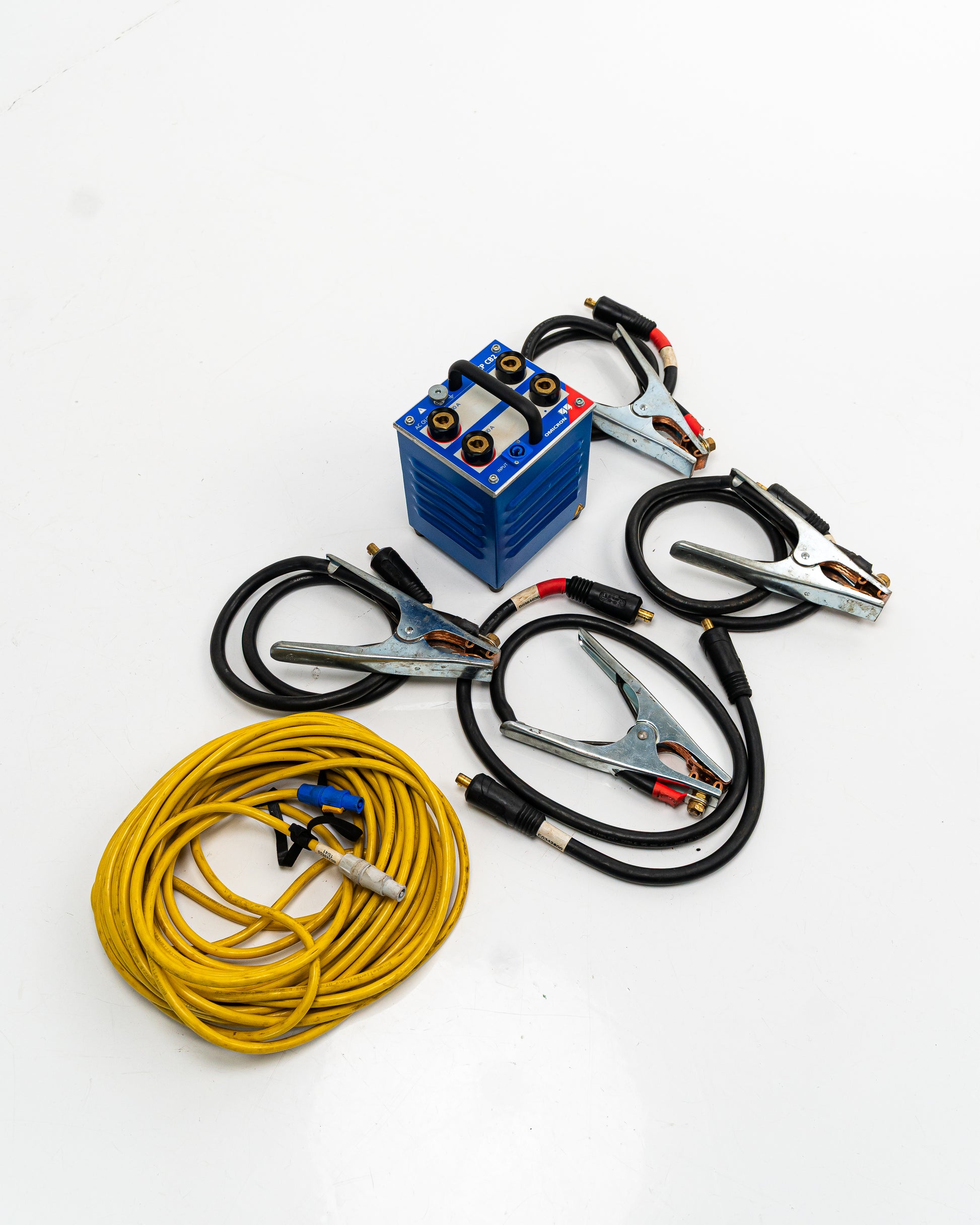

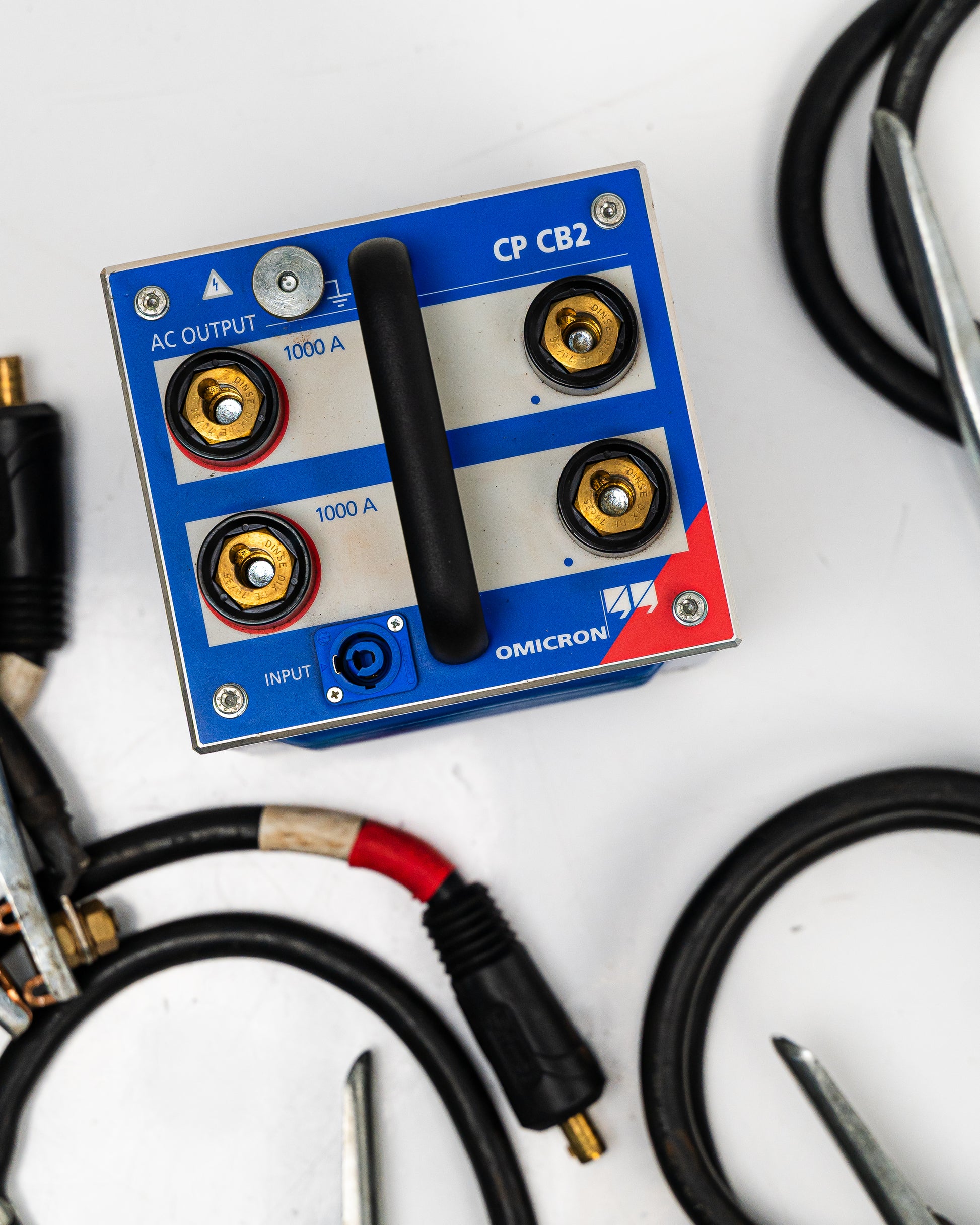

The Omicron CP CB2 is a powerful current booster designed to extend the capabilities of the CPC 100 for primary injection testing of circuit breakers, busbars, and ground grids. By delivering high test currents, the CP CB2 ensures accurate and reliable verification of circuit breaker performance, contact resistance, and protection system coordination.
Key Features & Benefits
- High-Current Output for Primary Injection Testing – Provides up to 2000 A for reliable testing of circuit breakers, busbars, and grounding systems.
- Enhanced Circuit Breaker Contact Resistance Testing – Ensures accurate evaluation of breaker contact integrity to detect issues like wear, corrosion, and improper connections.
- Seamless Integration with CPC 100 – Works as an accessory to CPC 100, significantly increasing its output current for demanding test applications.

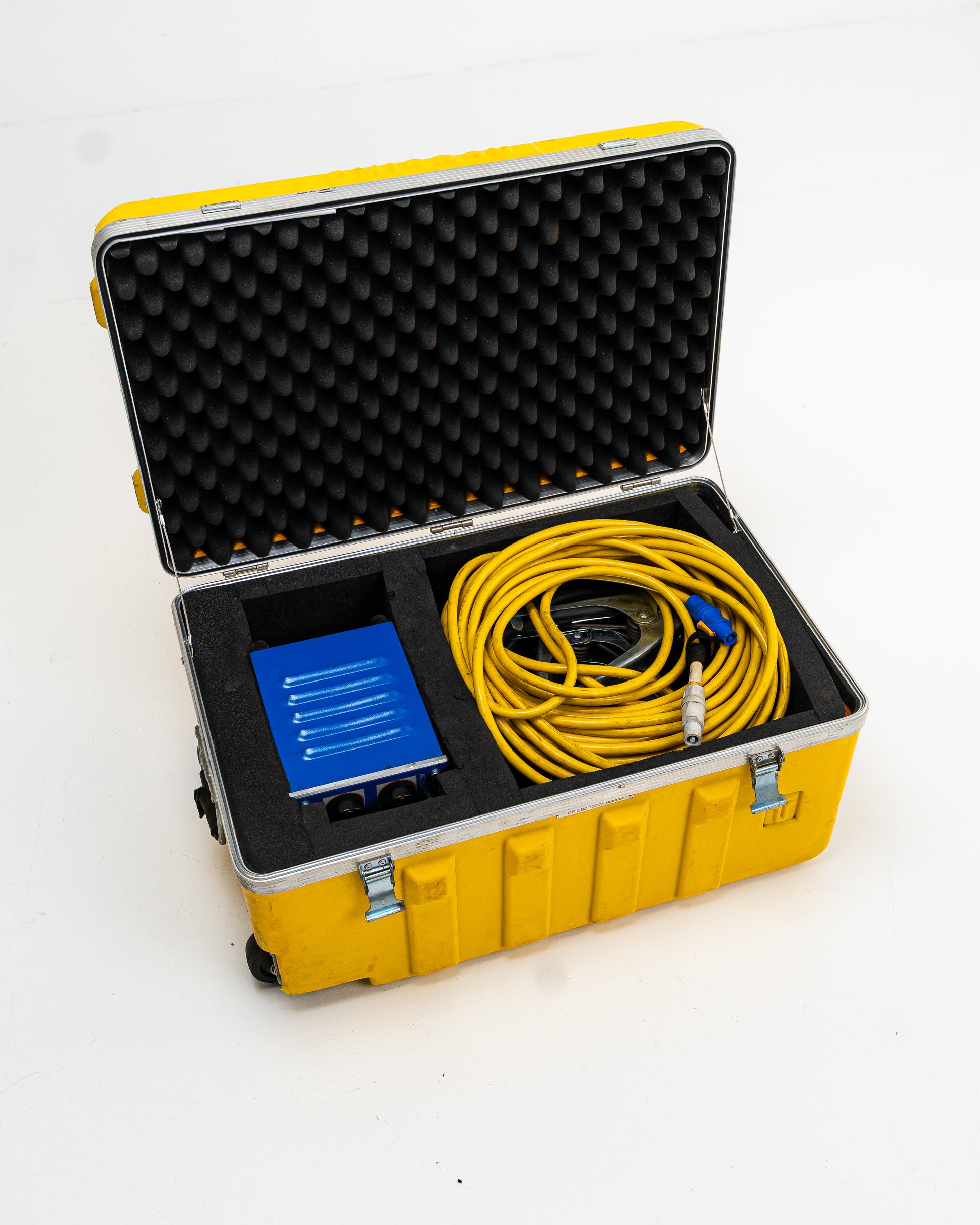

- Compact & Portable Design – Lightweight and easy to transport, making it ideal for field and substation testing.
- User-Friendly Operation – Intuitive interface and automated test sequences simplify the testing process, reducing setup time and minimising errors.
- Reliable & Safe Performance – Built with advanced protection features to ensure safe operation during high-current testing.
Applications
- Primary injection testing of circuit breakers, switchgear, and protective devices.
- Contact resistance measurement of high-current carrying components.
- Busbar and ground grid testing for effective power distribution and fault detection.
- Protection relay testing requiring high current levels.
Technical Specifications
- Max Current Output: Up to 2000 A
- Compatible With: Omicron CPC 100
- Weight: Portable and rugged for easy transport
- Safety Features: Overload protection, thermal monitoring
The Omicron CP CB2 is the ideal current booster for engineers and technicians conducting circuit breaker and high-current primary injection testing, delivering powerful, precise, and reliable results in the field.
