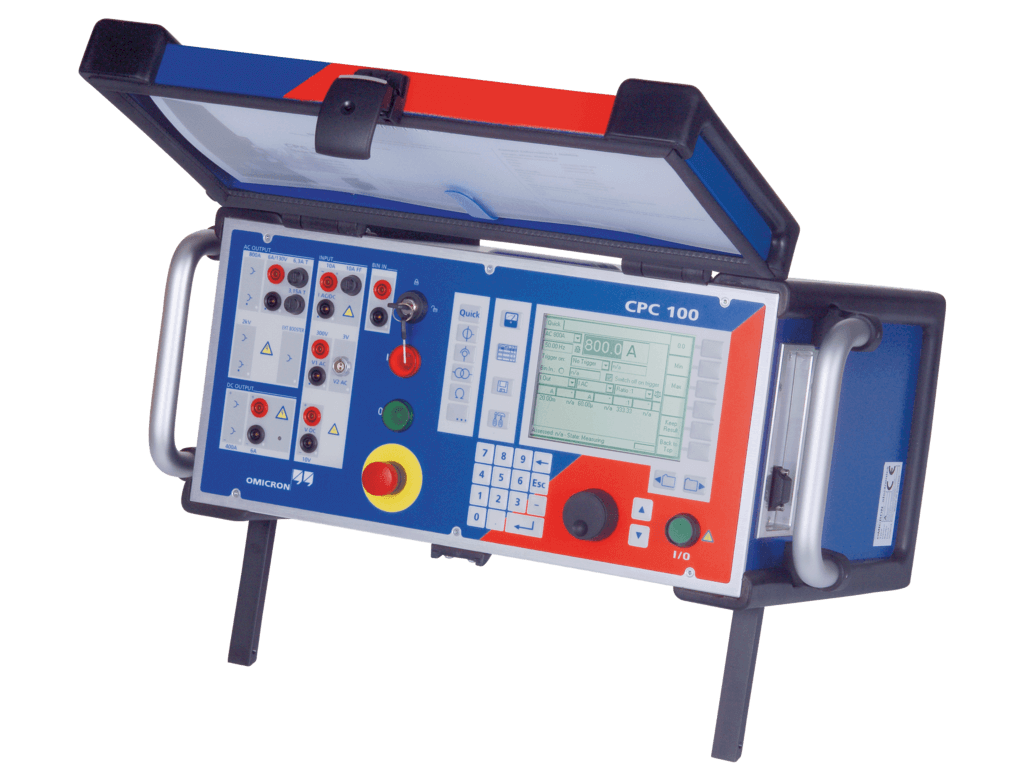

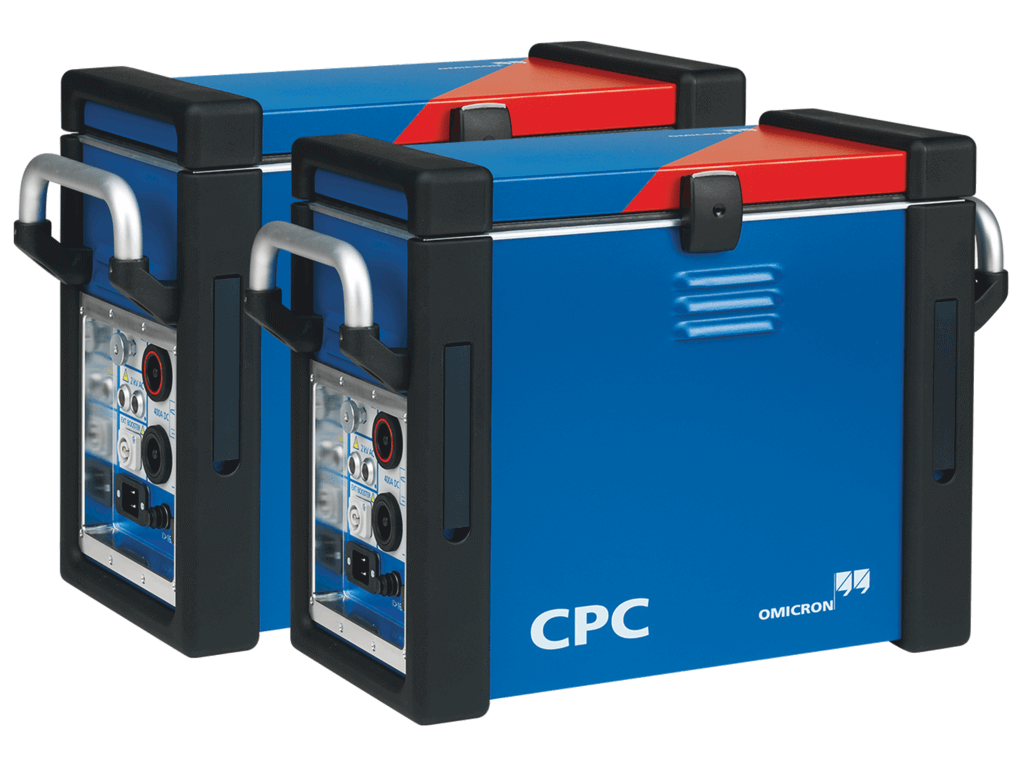

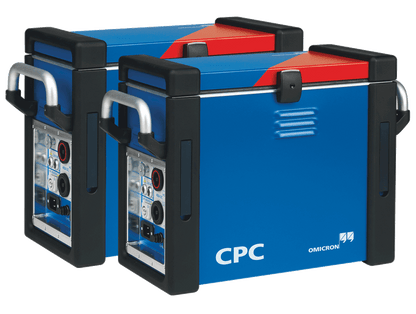

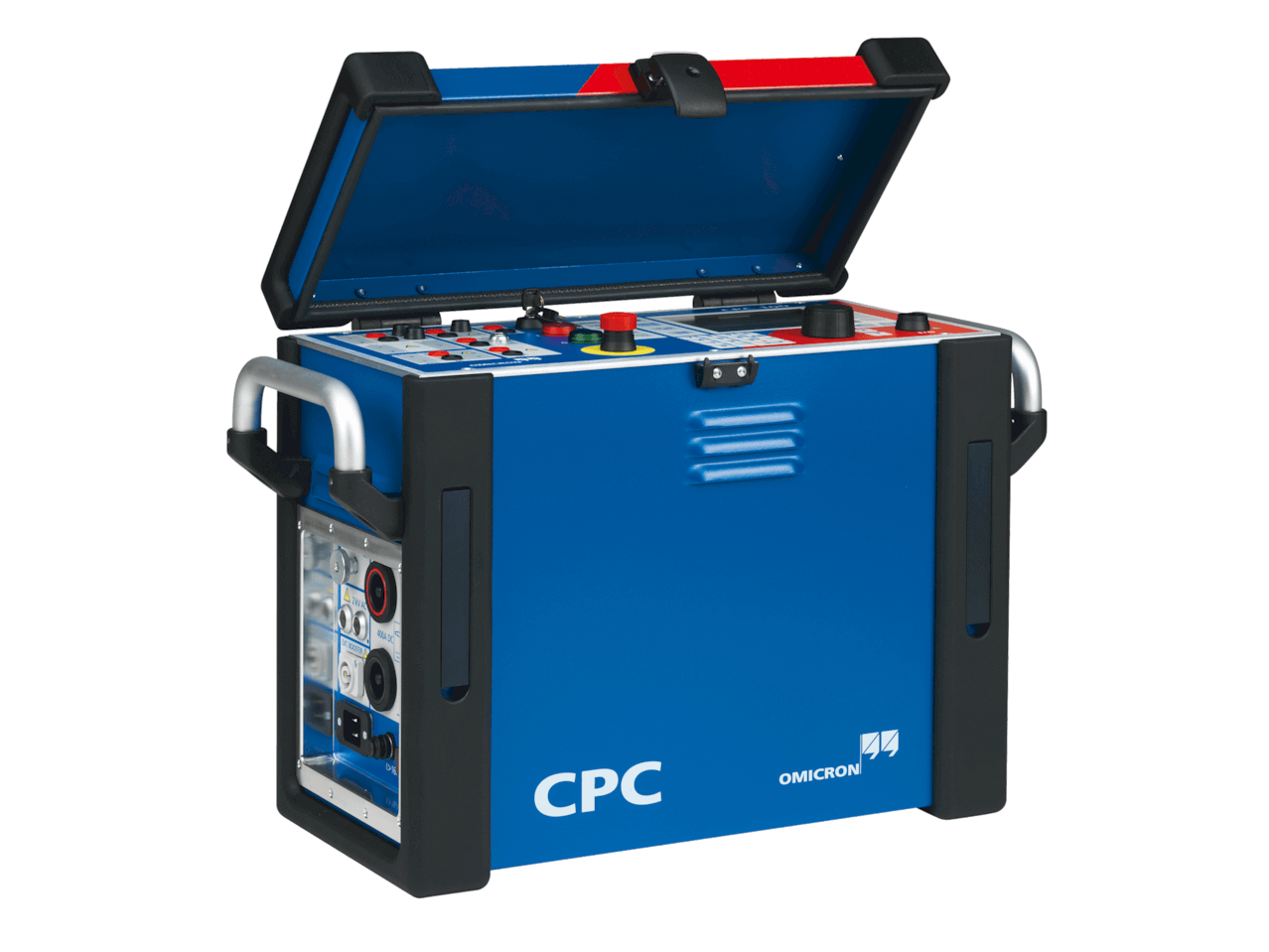

The Omicron CPC 100 is a multifunctional electrical testing device designed for commissioning, maintenance, and diagnostics of power system equipment. Combining multiple testing capabilities in a single compact unit, the CPC 100 simplifies testing workflows, reduces the need for multiple devices, and ensures accurate, reliable results for electrical engineers and technicians.
Key Features & Benefits
Versatile Testing Applications – Performs a wide range of tests on transformers, circuit breakers, current transformers (CTs), voltage transformers (VTs), grounding systems, rotating machines, and more.
Powerful & Efficient – Provides up to 800 A or 2000 V output, eliminating the need for multiple heavy test equipment while delivering high-performance testing.
High Accuracy & Reliability – Ensures precise measurement of electrical parameters, helping maintain compliance with international standards.
Lightweight & Portable – Weighing only 29 kg, the CPC 100 is easy to transport, making it ideal for both field and laboratory testing.

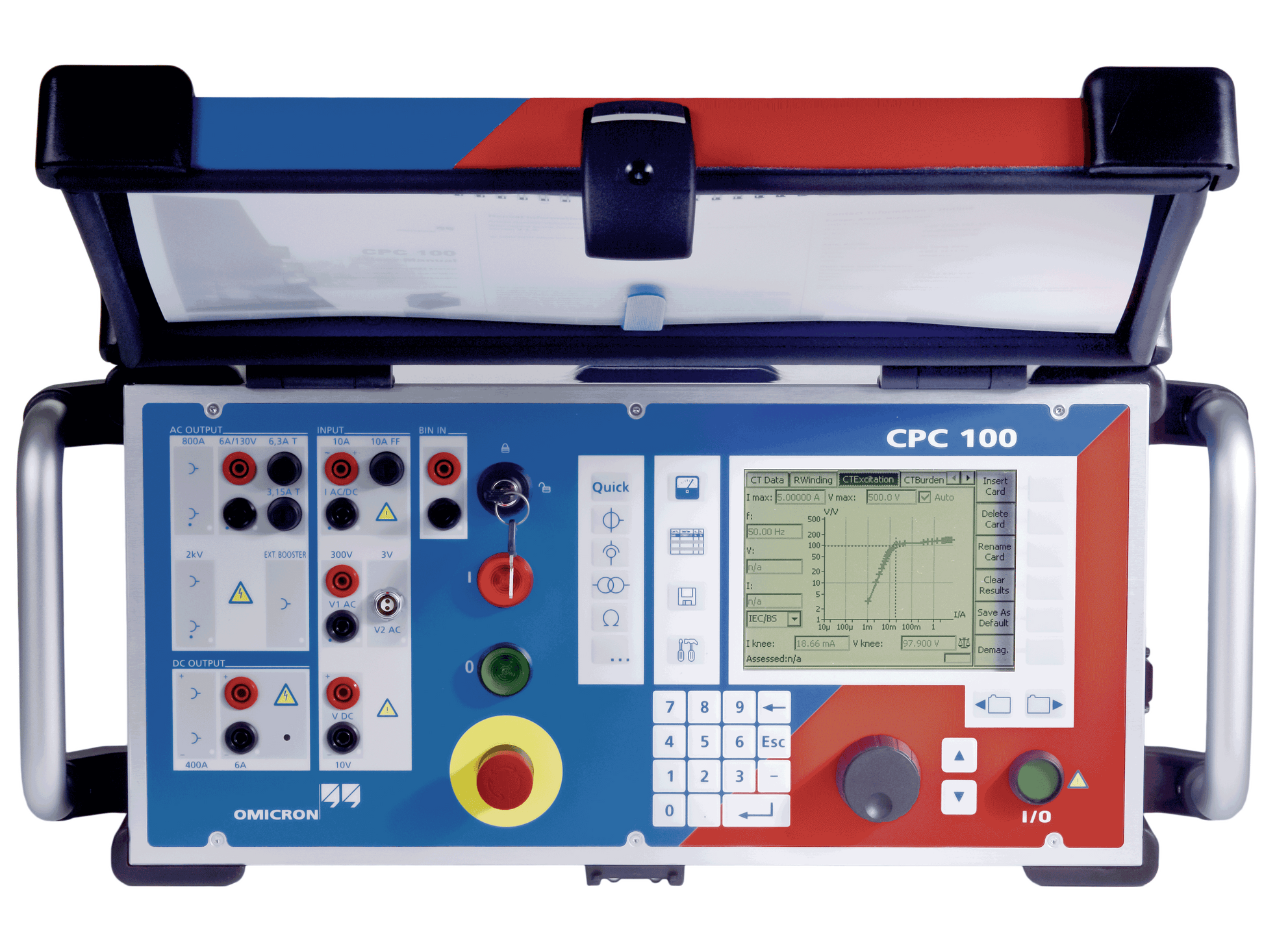

User-Friendly Operation – Features an intuitive interface with guided test sequences, reducing manual effort and minimising the risk of errors.

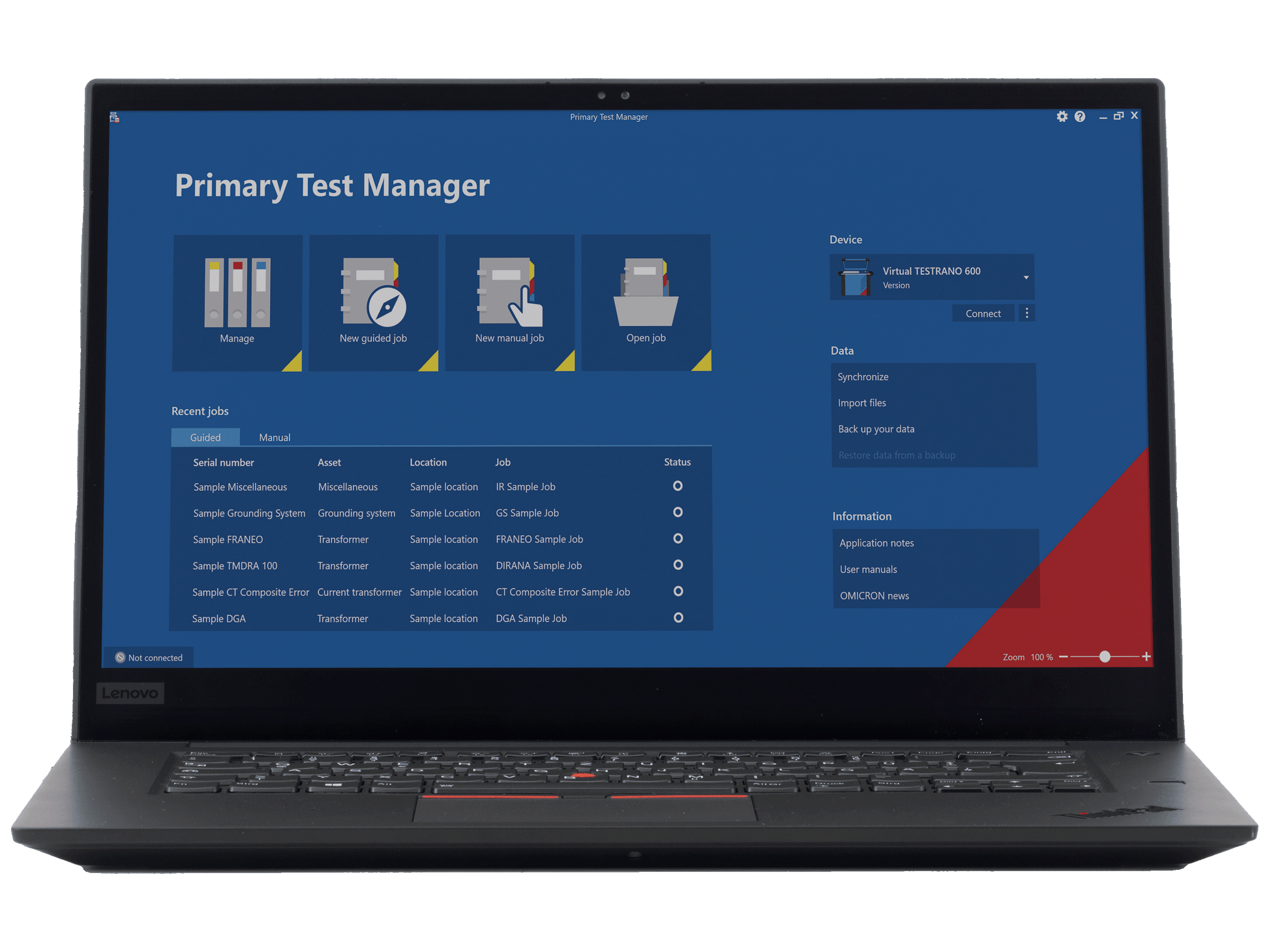

Seamless Software Integration – Works with Primary Test Manager™ (PTM) software, allowing for automated testing, advanced data analysis, and comprehensive reporting.
Applications
Power Transformer Testing – Turns ratio, winding resistance, impedance, and excitation current measurements.
Rotating Machine Testing – Stator resistance and impedance testing.
Technical Specifications
Current Output: Up to 800 A
Voltage Output: Up to 2000 V
Power Output: Up to5 kVA
Weight: 29 kg
Software: Compatible with Omicron Primary Test Manager™ (PTM)
The Omicron CPC 100 is the ultimate all-in-one electrical test solution, designed to simplify testing, enhance efficiency, and ensure accurate, reliable results in any power system environment.
